LM-78 Industrial Roller Door

Curved laminated aluminum blade filled inside with polyurethane foam that provides the door with thermal, acoustic and resistant insulation.

Special logistics blocks.

STANDARD

LM-78

Characteristics

– Surface Total coverage closed 77 mm
– Weight approx. m² 6 kg *See densities 70/180/300 Kg/m³
– Max. width approx. 7,500 mm
– Max. height approx. 5,000 mm
– Minimum rolling diameter 100 mm

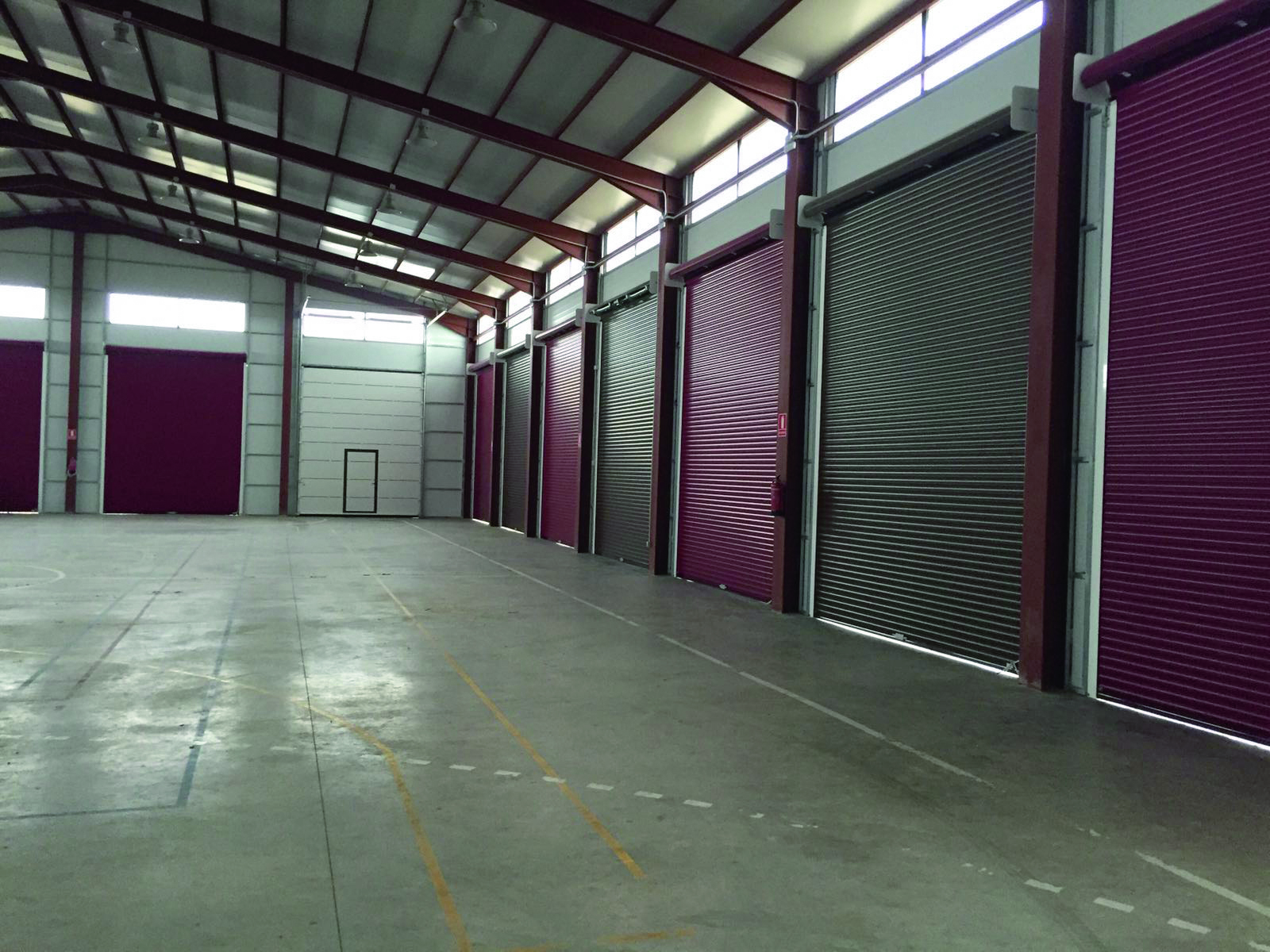

Laminated aluminum roll-up door model LM-78 from the brand PORTALUM. Made with a curved design profile with main measurements of 77×19 mm, and with expanded polyurethane interior filling that gives it good resistance. It is complemented by nylon side caps, a reinforced double-wall extruded lower plinth profile with rubber weatherstripping and aluminium side guides with anti-friction polyamide weatherstripping, which prevent friction and wear of the slats. The LM-78 roll-up door has as its main characteristics its low noise level and great lightness, which make it the perfect option for logistics centers or facilities where there are high demands for daily maneuvers.
